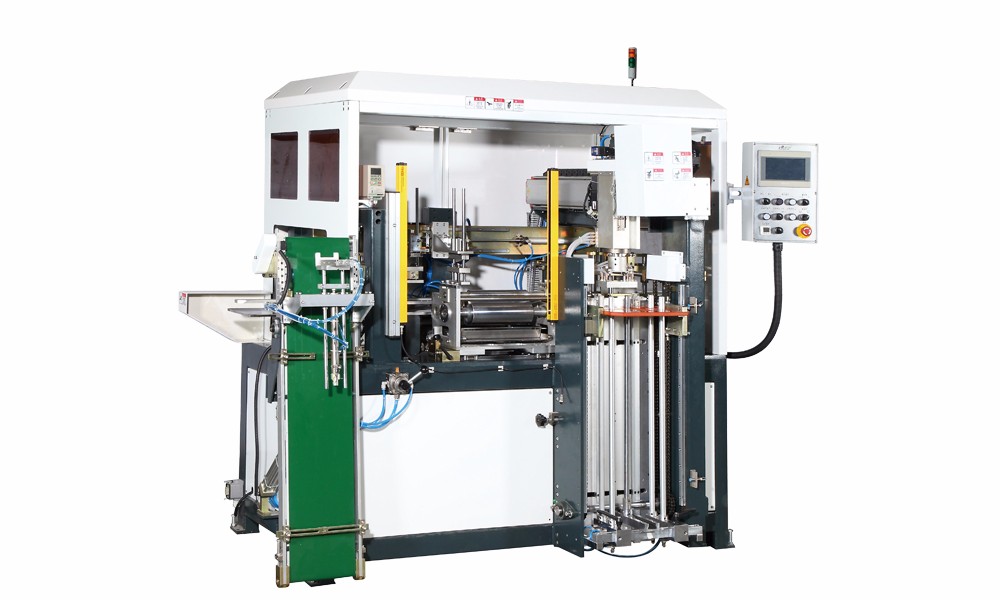

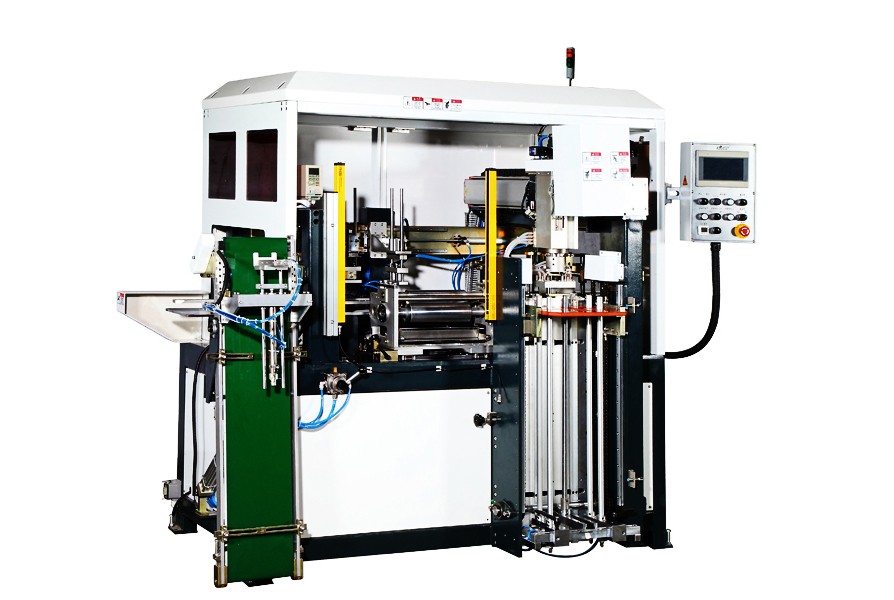

HM-ZXTK2015B Automatic Lining Machine Features and function

1. This is a line which has 6 working positions.

2. Position 1 to feed the box. It has a conveyor.

3. Position 2 to press the box.

4. Position 3 to scrape on the long sides.

5. Position 4 to scrape on the wide sides.

6. Position 5 to paste the lining. It has the lift for lining stack, one vacuum pump to suck the lining, two-axis to move the lining and the servo motor for glue roller.

7. Position 6 to press the lining.

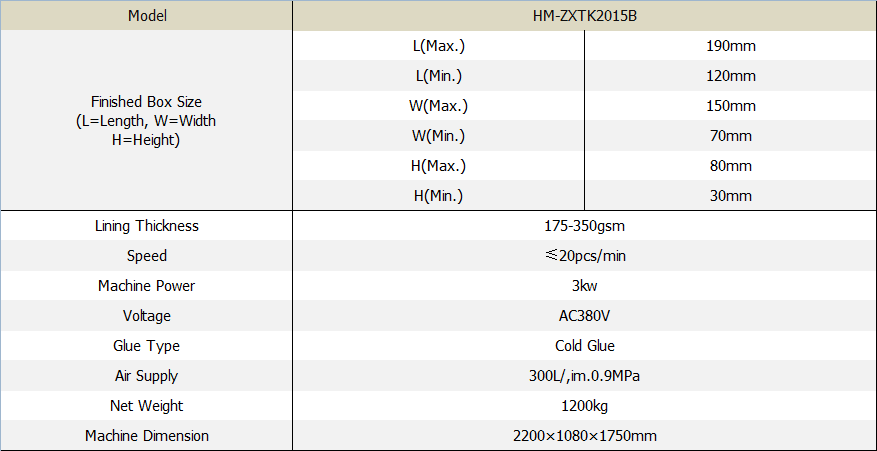

Technical parameters
